why us? what is our advantage of the CTP machine technology?
- l We adopted high power imported laser from Japan and America, so the laser life is longer than others.
- l The marble stone working platform ensures that the machine still keeps high precision and high stability under the condition of long working time.
- l The overall design of the equipment adopts independent modular design, which facilitates the upgrade, replacement and maintenance of the equipment after.
- l Advanced auto-focus system is adopted, which is suitable for different thickness plates and different brand plates.
- l Our non-linear calibration technology ensures the accuracy of the plate making.
- l Remote intelligent diagnosis technology enables engineers to diagnose and maintain machines without leaving home.
- l The automatic balance of laser energy technology ensures the consistency of laser spot size, and ensures the uniformity, firmness and delicacy of output dots.
- l Unique loading and unloading technology saves plate-making time and improves plate-making efficiency.
- l The photoelectric laser positioning technology ensures the high standard registration
- l Open 1-bit tiff workflow interface is applicable to all workflow software.

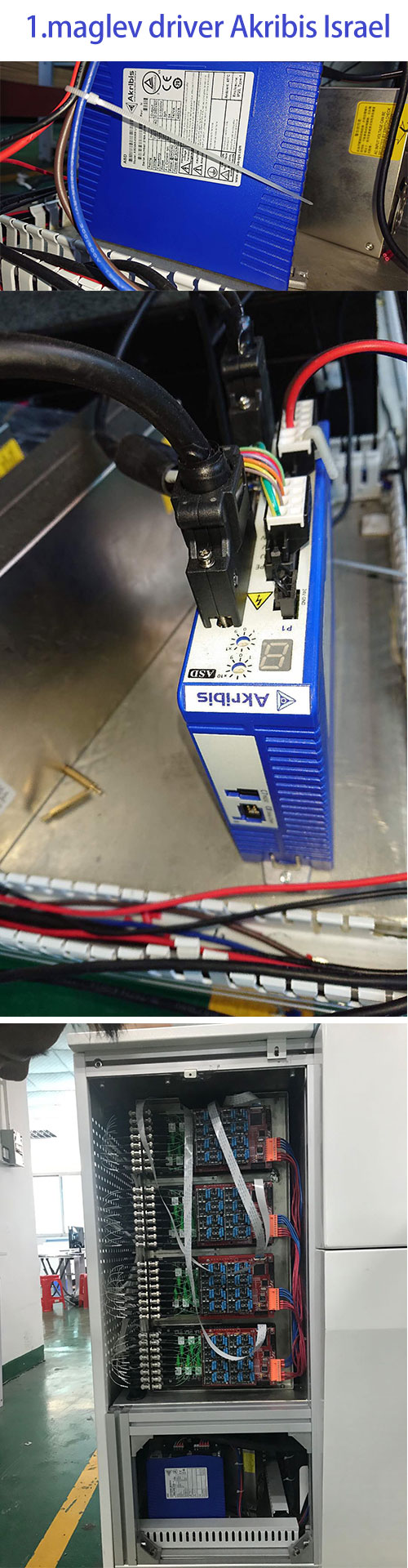

- l Abandoning the traditional lead-screw mode, we adopt the advanced maglev motion control system ensures the accuracy and service life of the machine.

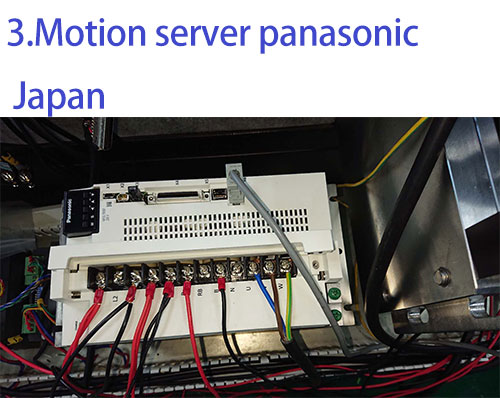

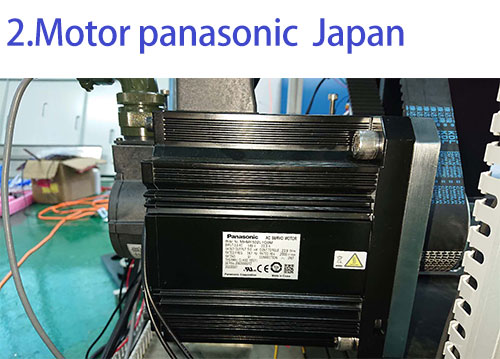

Looking through the machine

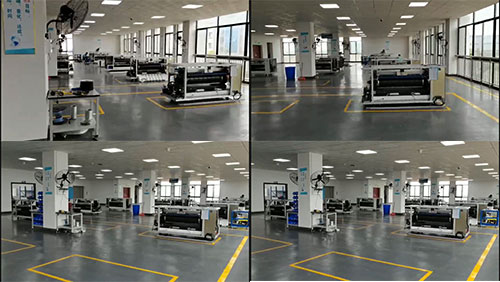

factory browse?
|
技術參數(Technical Specification) |
|||||||||||||||
|
型號 Model |
熱敏型(Thermal) |
UV型(UV) |
|||||||||||||
|
印霸 8300B Yinber 8300B |
印霸 8500B Yinber 8500B |
印霸 8600B Yinber 8600B |
印霸 8900B Yinber 8900B |
印霸 8100B Yinber 8100B |
印霸 4300B Yinber 4300B |
印霸 4500B Yinber 4500B |
印霸 5300B Yinber 5300B |
印霸 5500B Yinber 5500B |
印霸 9300B Yinber 9300B |
印霸 9500B Yinber 9500B |
印霸 9600B Yinber 9600B |
印霸 9900B Yinber 9900B |
印霸 9100B Yinber 9100B |
||
|
激光路數 NO. of Lasers |
32 |
48 |
64 |
96 |
128 |
32 |
48 |
32 |
48 |
32 |
48 |
64 |
96 |
128 |
|
|
制版速度 Throughput (1130x800mm) (張/小時,plates/h) |
17 |
22 |
27 |
33 |
43 |
22 |
30 |
22 |
30 |
17 |
22 |
27 |
33 |
43 |
|
|
最大/最小幅面 Max./Min. Format |
最大幅面(Max.): 1160mmx 940mm 最小幅面(Min.): 350mmx 400mm |
最大幅面(Max.): 925mmx 675mm 最小幅面(Min.): 350mmx 400mm |
最大幅面(Max.): 1160mmx 940mm 最小幅面(Min.): 350mmx 400mm |
||||||||||||
|
激光光源 Laser Source |
830nm |
405nm |
|||||||||||||
|
制版精度 Resolution |
2400DPI 其他精度可定制(Resolution can be customized) |
||||||||||||||
|
上、下版方式 Loading System |
全自動、半自動(可選配自動上版器) Automatic、Semi-Auto(Optional Auto-loader) |
||||||||||||||
|
適用版材 Plates Requirement |
0.15-0.4mm 各品牌熱敏版(Thermal plates, no brand requirement) |
0.15-0.4mm 各品牌UV版(UV plates, no brand requirement) |
|||||||||||||
|
CTP接口 Interface |
1-bit Tiff接口以及流程直接驅動,支持CIP3/CIP4 1-bit Tiff interface and direct workflow driver, support CIP3/CIP4 |
||||||||||||||
|
電力要求 Power |
AC220V, 50-60Hz 5.5KVA |
||||||||||||||
|
工作環境要求 Work Environment |
溫度(Temperature): 20-25?C 濕度(Humility): 40%-80% |
||||||||||||||
|
尺寸、重量 Size &Weight |
尺寸: 2020mmx1000mmx930mm 凈重: 1500KGS |
尺寸: 1900mmx1200mmx1000mm 凈重: 1000KGS |
尺寸: 2020mmx1000mmx930mm 凈重: 1500KGS |
||||||||||||
